Brand : Dell

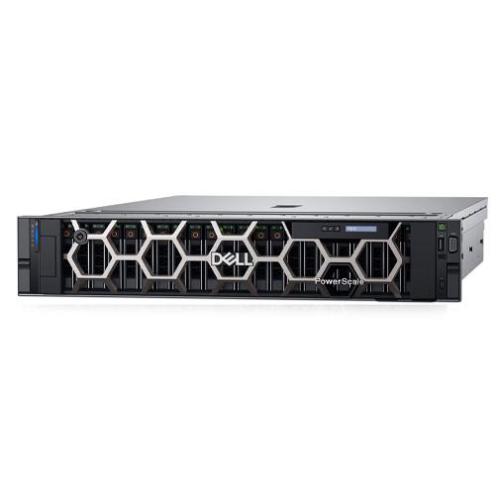

Product : Powerscale F910 All Flash NAS Storage
Processor: 2 Intel Xeon CPUs, 2.4GHz/24C
Functional: All-flash, all-NVMe NAS Scale-out storage
Memory: 512GB DRAM DDR5 ECC
Base enclosure: 2U Form Factor 24x2.5” NVMe SSD drives
Raw node capacity: 92 TB - 2.9 PB
Nodes per cluster: 3 up to 252
Raw cluster capacity: 276 TB - 737 PB
Memory: 512 GB
Storage type: NVMe SSD (TLC, QLC)
SSD drives per node: 24
Expansion Capacity:Scale-out architecture; Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
Expansion enclosures Minimum cluster size: 3 nodes
Expansion enclosures Maximum cluster size: 252 nodes
Connectivity:: Front End Networking (per node):; Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28); Dual port 100G NIC supporting 40G or 100G connections; Infrastructure Networking (per node):; 2 InfiniBand connections with QDR links or Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28)
Media Types: NVMe SSDs 3.84 TB (TLC); 7.68 TB (TLC); 15.36 TB (QLC); 30.72 TB (QLC)
Power: 1400 W
Dual redundant power supplies Max Power consumption(200-240V per node): @25°C – 877 Watts; @35°C – 913 Watts
Typical Thermal rating: @25°C – 2992 BTU/hr; @35°C – 3115 BTU/hr
Physical: Height: 86.8 mm / 3.41 in X Width: 482 mm / 18.97 in X Depth: 772.13 mm / 30.39 in. with bezel
Weight: 32.75 kg / 72.2 lbs
