Brand : Dell

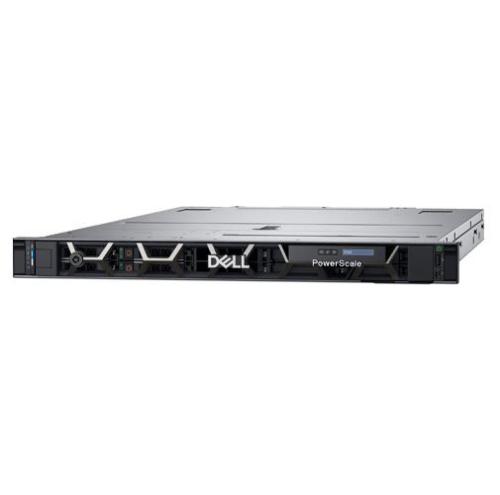

Product : PowerScale F210 All Flash NAS Platform Storage
Processor: 2 Intel Xeon CPUs, 2GHz/10C
Raw node capacity:7.7 TB - 61 TB
Nodes per cluster:3 up to 252
Raw cluster capacity:23 TB to 15 PB
Functional:All-flash, all-NVMe NAS Scale-out storage
Memory: 128 GB DRAM DDR5 ECC
System Overview Base enclosure: 1U Form Factor 4x2.5” NVMe SSD drives
Expansion Capacity: Scale-out architecture
Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
Expansion enclosures Minimum cluster size: 3 nodes
Expansion enclosures Maximum cluster size: 252 nodes
Connectivity: Front End Networking (per node):; Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28); Dual port 100G NIC supporting 40G or 100G connections; Infrastructure Networking (per node):; 2 InfiniBand connections with QDR links or Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28)
Software:OneFS 9.2.1 or later. Upgrades are non-disruptive PowerScale OneFS distributed file system
Power: 800 W
Dual redundant power supplies Max Power consumption(200-240V per node): @25°C – 877 Watts; @35°C – 913 Watts
Typical Thermal rating: @25°C – 2992 BTU/hr; @35°C – 3115 BTU/hr
Dimensions: Height: 42.8mm / 1.68in; Width: 482mm / 18.97 in; Depth: 822.88mm / 32.39 in. with bezel
Weight: 22.5 kg / 49.6 lbs.
