Brand:Dell

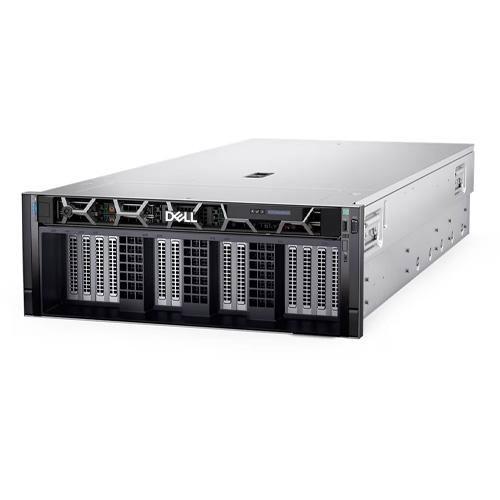

Product: PowerEdge XE9685L 4U AI Rack Server
Form Factor: 4U rack server
Processor: Two AMD EPYC 9005 Series processors with up to 192 cores per processor
Cooling options : Liquid cooled CPUs, GPUs, and NVLink Switches
Operating System: Canonical Ubuntu Server LTS
Accelerators: 8 x NVIDIA HGX B200 180GB 1000W SXM6 GPUs, fully interconnected with NVIDIA NVLink technology
Memory: DIMM Speed Up to 6400 MT/s RDIMM 24 DDR5 DIMM slots RDIMM 3 TB max
Storage Front Bays: Up to 8 x 2.5-inch NVMe drives max 122.88 TB
Storage Controllers (Internal Boot): Boot Optimized Storage Subsystem (NVMe BOSS-N1) HWRAID 1: 2 x M.2 SSDs
Internal controllers: NA
Management & Security: iDRAC9 with Datacenter license, OpenManage Enterprise Silicon Root of Trust, Secure Boot, Secured Component Verification, TPM 2.0
Power Supplies: 3000W Titanium 200-240 VAC or 240 VDC, hot swap redundant for B200 GPU
Fans: Up to six high performance (HPR) gold grade fans installed on the top layer: Up to six high performance (HPR) gold grade fans installed on the bottom layer of the system
Ports Network Options: 1 x OCP 3.0 (x8 PCIe lanes)
Front ports: 1 x iDRAC Direct (Micro-AB USB) port; 1 x USB 2.0; 1 x VGA
Rear ports: 1 x USB 2.0; 1 x USB 3.0: 1 x iDRAC Direct ethernet port
PCIe slot: Up to 12 x16 Gen5 (x16 PCIe) full-height, half-length
Bezel: Optional LCD bezel or security bezel
Dimensions: Height 174.3 mm (6.86 in) x Width: 447 mm (17.59 in.) X Depth 1037.57 mm (40.82 in.)
Weight: Up to 94.6 kg ( 208.55 lbs.)
Rack Support: Your system supports the Generic Tool-less stab-in sliding rail. The Generic Tool-less stab-in sliding rail supports tool-less installation in 19" EIA-310-E compliant square hole and unthreaded round hole 4-post racks. It allows for the partial extension of the system out of the rack, enabling serviceability of key internal components.
