Brand:Dell

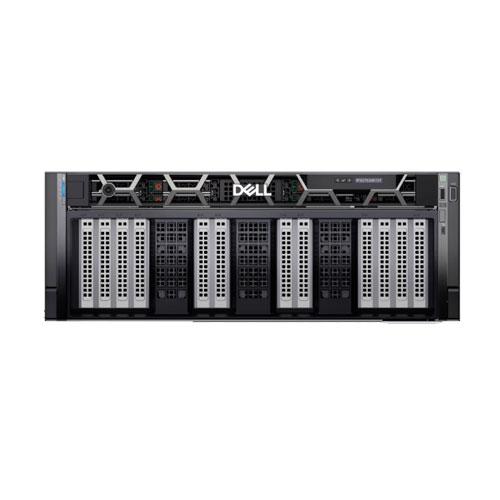

Product: PowerEdge XE9680L 4U AI Rack Server
Form Factor: 4U rack server
Processor: Up to 2 × 5th Gen Intel Xeon Scalable CPUs (up to 64 cores each)
Operating System: Canonical Ubuntu Server LTS ; RedHat Enterprise Linux; SUSE Linux Enterprise Server ; VMWare ESXi
Memory: 32 DDR5 DIMM slots, up to 4 TB max, speeds up to 5600 MT/s
Storage: Up to 10 × 2.5” SAS/SATA/NVMe hot-swap drives Internal BOSS-N1 module with dual M.2 NVMe (RAID 1)
GPU / Accelerators: Up to 8 × NVIDIA H100 Tensor Core GPUs, 80 GB HBM3 each, interconnected with NVLink & NVSwitch
Power Supplies: Redundant Titanium-certified PSUs, 3000 W and 3200 W options
Front ports: 1 x iDRAC Direct (Micro-AB USB) port; 1 x USB 2.0; 1 x VGA
Rear ports: 1 x USB 2.0; 1 x USB 3.0: 1 x iDRAC Direct ethernet port
Cooling: Advanced Direct Liquid Cooling (DLC) for GPUs and CPUs, with hot-swappable pumps and failover support
Management & Security: iDRAC9 with Datacenter license, OpenManage Enterprise Silicon Root of Trust, Secure Boot, Secured Component Verification, TPM 2.0
Dimensions: Height: 260 mm (10.23 in) X Width: 448 mm (17.6 in)X Depth: 914 mm (35.9 in)
Weight: 63.5 Kg (149.02 lb)
