Brand:Dell

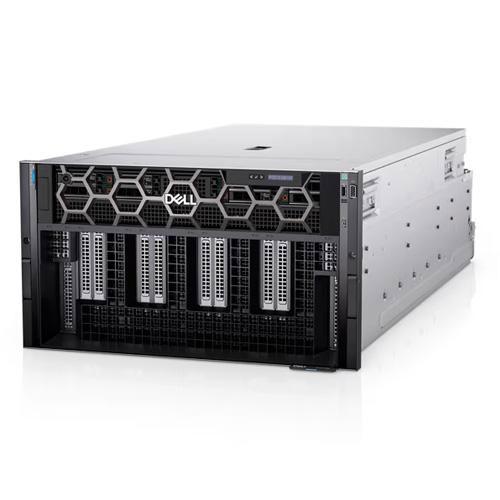

Product: PowerEdge XE9680 6U AI Rack Server
Form Factor: 6U rack server
Processor: Two 5th Generation and Two 4th Generation Intel Xeon Scalable processors with up to 64 cores(5th Gen) and 56 cores(4th Gen) per processor
Operating System: Canonical Ubuntu Server LTS ; RedHat Enterprise Linux; SUSE Linux Enterprise Server ; VMWare ESXi
Chipset: Intel C741 chipset
Memory: DIMM Speed: Up to 5600 MT/s on the 5th Generation and Up to 4800 MT/s on the 4th Generation Intel Xeon Scalable processors RDIMM 32 DDR5 DIMM slots RDIMM 4 TB max
Front Bays Storage: Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives max 122.88 TB; Up to 16 x E3.S NVMe direct drives max 122.88 TB
Storage Internal Controllers: PERC H965i (Not supported with Intel Gaudi3) Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs
Management & Security: iDRAC9 with Datacenter license, OpenManage Enterprise Silicon Root of Trust, Secure Boot, Secured Component Verification, TPM 2.0
Embedded OSFP: 6 x 800 Gb (available only with Intel Gaudi3)
Network Options: 1 x OCP 3.0 (optional); 2 x 1GbE LOM (optional)
Front ports: 1 x iDRAC Direct (Micro-AB USB) port; 1 x USB 2.0; 1 x VGA
Rear ports: 1 x USB 2.0; 1 x USB 3.0: 1 x VGA; 1 x RJ45 iDRAC9 ethernet port
PCIe Slot: Up to 10 x16 Gen5 (x16 PCIe) full-height, half-length (8 PCIe slots with Intel Gaudi3)
Bezel: Optional LCD bezel or security bezel
Dimensions: Height 10.36 in. (263.20 mm) X Width 18.97 in. (482.00 mm) X Depth 39.71 in. (1008.77 mm)
Weight: up to 114.05 kg (251.44 lbs.)
