Brand: Dell

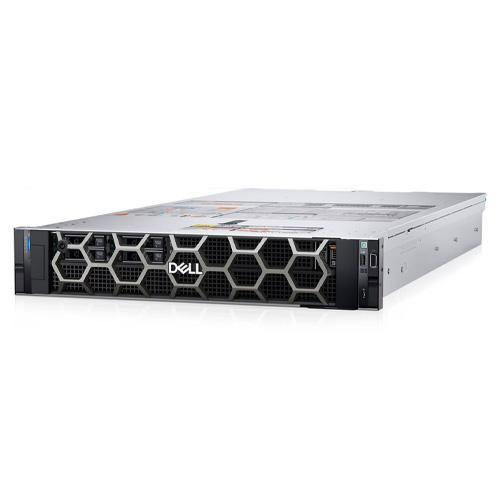

Product: PowerEdge XE9640 2U AI Rack Server
Form Factor: 2U rack server
Processor: Two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor
Operating System: RedHat Enterprise Linux
Chipset: Intel C741 chipset
Memory: DIMM Speed: Up to 4800 MT/s RDIMM Only 16 DIMM slots are supported out of 32 DIMMs (with 8 DIMMs per processor) Maximum RAM RDIMM 1 TB max
Front Bays Storage: Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives max 122.88 TB; Up to 16 x E3.S NVMe direct drives max 122.88 TB
Storage Internal Controllers: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs or USB; S160
Management & Security: iDRAC9 with Datacenter license, OpenManage Enterprise Silicon Root of Trust, Secure Boot, Secured Component Verification, TPM 2.0
Embedded OSFP: 6 x 800 Gb (available only with Intel Gaudi3)
Network Options: 1 x OCP 3.0 (optional); 2 x 1GbE LOM (optional)
Front ports: 1 x iDRAC Direct (Micro-AB USB) port; 1 x USB 2.0; 1 x VGA
Rear ports: 1 x USB 2.0; 1 x USB 3.0: 1 x VGA; 1 x RJ45 iDRAC9 ethernet port
PCIe Slot: 2 CPU configuration: Up to 4 PCIe slots (4 x16 Gen5)
Bezel: Optional LCD bezel or security bezel
Dimensions: Height 86.8 mm (3.41 inches) X Width 482 mm (18.97 inches) X Depth 926.5 mm (36.47 inches)
Weight: 43.2 kg (95.23 pounds)
