Brand:Dell

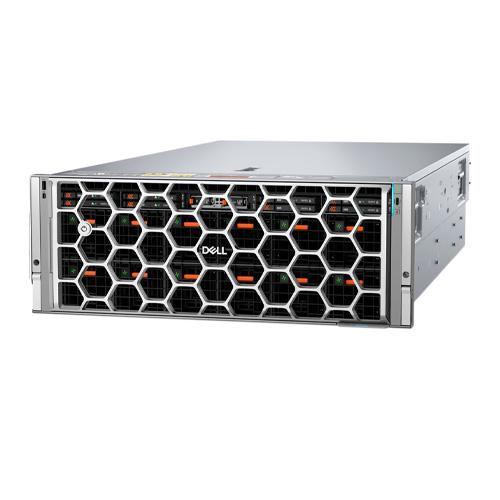

Product: PowerEdge XE7745 AI Rack Server
Form Factor: 4U rack server
Processor: Two AMD EPYC 9005 Series processor with up to 192 Zen5 cores per processor
Operating System: Canonical Ubuntu Server LTS ; RedHat Enterprise Linux; SUSE Linux Enterprise Server ; VMWare ESXi
Chipset: AMD chipset
Accelerators: 8x PCIe Gen 5 x16 DW up to 600W or 16x PCIe Gen 5 x16 SW up to 75W
Memory: DIMM Speed Up to 6000 MT/s RDIMM
Memory Module Slots: 24 DDR5 DIMM slot
Maximum RAM: RDIMM 3.072 TB
Storage Front Bays: Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB
Storage Mid Bay: N/A
Storage Rear Bay: N/A
Storage Controllers: Internal Boot Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs USB
Internal controllers: NA
Tools: Dell Repository Manager; Dell System Update ; Enterprise Catalogs : iDRAC RESTful API with Redfish : IPMI: RACADM CLI
Power Supplies: 3200 W Titanium 200—240 VAC or 240 VDC
Fans: Up to four sets of high performance (HPR) platinum grade fans (dual fan module) installed in mid tray; Up to twelve high performance (HPR) platinum grade fans installed on the front of the system
Ports: Network Options: OCP NIC card 3.1
Front Ports: 1 x USB 2.0 Type A port: 1 x USB 2.0 Type A port (iDRAC/BMC Direct): 1 x Mini-DisplayPort (optional)
Rear Ports: 1 x Dedicated ethernet port for iDRAC management: 1 x VGA: 2 x USB 3.1 Type A ports
Internal Ports: 1 x USB 3.1 Type A port (optional)
Slots: PCIe: Up to 8 x 16 lane PCIe slots (in addition to 16 internal GPU PCIe slots)
Video Card: 1 x VGA
Management & Security: iDRAC9 with Datacenter license, OpenManage Enterprise Silicon Root of Trust, Secure Boot, Secured Component Verification, TPM 2.0
Bezel: Optional security bezel
Dimensions: Height: 174.3 mm (6.86 in.)x Width: 482 mm (18.98 in.)x Depth 899.56 mm (35.42 in.)
Weight: 68.5 Kg (151.02 lb)
Rack Support: Generic Tool-less stab-in sliding rail, Support for tool-less installation in 19"" EIA-310-E compliant square hole and unthreaded round hole 4-post racks.
Support for full extension of the system out of the rack to allow serviceability of key internal components.
