Brand: Dell

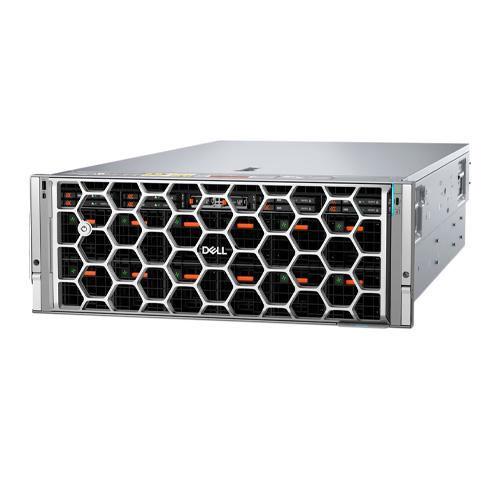

Product: PowerEdge XE7740 AI Rack Server
Form Factor: 4U rack server
Processor: Two Intel Xeon 6 series processors with up to 86 cores per processor
Operating System: Canonical Ubuntu Server LTS: RedHat Enterprise Linux : SUSE Linux Enterprise Server: VMWare ESXi
Accelerators: 8x PCIe Gen 5 x16 DW-FHFL up to 600W
Memory: DIMM Speed Up to 6400 MT/s
Memory Type: RDIMM Memory
Module Slots: 32 DDR5 DIMM slots
Maximum RAM: RDIMM 3 TB
Storage: Front Bay: Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB
Storage Controllers: Internal Boot: Boot Optimised Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs
Internal controllers: NA
Tools: IPMI
Power Supplies: 3200 W Titanium 200—240 VAC or 240 VDC
Fans: Up to 4 sets of high performance (HPR) platinum grade fans (dual fan module) installed in mid tray: Up to 12 high performance (HPR) platinum grade fans installed on the front of the system
Ports: Network Options: OCP NIC card 3.0
Front Ports: 1 x USB 2.0 Type A port (iDRAC/BMC Direct): 1 x USB 2.0 Type A port (optional): 1 x Mini-DisplayPort (optional)
Rear Ports: 1 x Dedicated ethernet port for iDRAC management; 1 x VGA; 2 x USB 3.1 Type A ports
Internal Ports: 1 x USB 3.1 Type A port
Slots: PCIe Up to 8 x16 Gen5 PCIe slots
Video Card: 1 x VGA
Management & Security: iDRAC9 with Datacenter license, OpenManage Enterprise Silicon Root of Trust, Secure Boot, Secured Component Verification, TPM 2.0
Bezel: Optional security bezel
Dimensions: Height: 174.30 mm (6.86 in.); Width: 482.00 mm (18.98 in.); Depth: 899.56 mm (35.42 in.)
Weights: 71.35 kg (157.30 lb)
Rack Support: Generic Tool-less stab-in sliding rail, support for tool-less installation in 19" EIA-310-E compliant square hole and unthreaded round hole 4-post racks. Support for full exten
