Brand: Dell

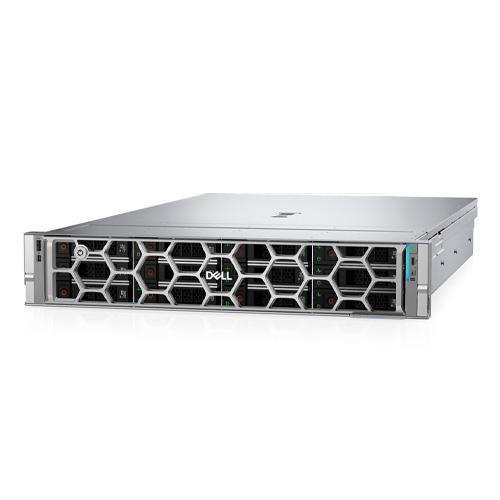

Product: Dell PowerEdge R770 2U Two Socket Rack Server
Form Factor: 2U Rack Server
Processor: 2 x Intel Xeon 6 6700P/6500P/6700E processors
Operating System: VMware ESXi: Windows Server; Windows Server Datacenter
Memory: 32 x 256 GB DDR5 (8TB)
Storage: 2.4 PB Max Storage
GPU: 6 x 75W (SW); 2 x 450W (DW)
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs M.2 interposer with up to 2 x M.2 NVMe SSDsUSB
Power Supplies: 800 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant
Front Ports: 1 x USB 2.0 Type C port: 1 x USB 2.0 Type A port (optional); 1 x Mini-DisplayPort (optional); 1 x DB9 Serial port (with front I/O configuration); 1 x Dedicated ethernet port for iDRAC management
Rear Ports: 1 x Dedicated ethernet port for iDRAC management: 1 x VGA : 2 x USB 3.1 Type A ports: 1 x DB9 Serial
Internal Ports: 1 x USB 3.1 Type-A
PCIe Slots: Up to 3 x16 Gen5 PCIe slots
Bezel: Optional Metal Bezel
Dimensions: Height 86.80 mm (3.42 in.)X Width482.00 mm (18.98 in.)X Depth 802.40 mm (31.59 in.)
Weight: Max 28.53 kg (62.89 lbs)
