Brand : Dell

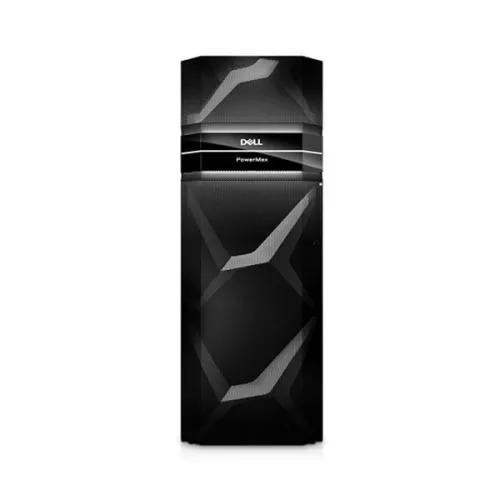

Product : PowerMax 8500 3U All Flash Storage
CPU : Memory config 2-3: Intel Xeon Gold 6254 3.9 GHz with 18 core; Memory config 4: Intel Xeon Gold 8280L
Number of Bricks : 1 to 8
Engine Enclosure : 3U
Capacity Per Array : 18 PBe
Response Time : Under 60 microseconds
Data Reduction Guarantee : 5:1 data reduction (Open); 3:1 data reduction (Mainframe)
Nodes Per Array : 2-16 nodes
Dynamic virtual matrix interconnect : Direct Connect InfiniBand; 100 Gbps per port
Max Number of Devices/Secure Snapshots : 64K LUNs / 65M snapshots
Cache-system min (raw) : 1792 GB
Cache-system max (raw) : 45.056 TB
Cache-per engine options : 1.792 TB; 3.584 TB; 7.680 TB
Vault stratery : Vault to Flash
Vault implementation : 4 NVMe SED Flash Module /Node Pair
Maximum front-end I/O modules/Node Pair : 8
Front-end I/O modules and protocols supports : 4 x 32Gbs (FC; NVMe/FC; FICON; SRDF); 4 x 25GbE (iSCSI; SRDF; NVMe/TCP); 4 x 10GbE (iSCSI; SRDF; NVMe/TCP); 1 x zHyperlink Port (MF; zHyperlink)
NVMe Drives Supported : 3.84TB; 7.68TB; 15.36TB
Dimensions (WxDxH) : 60 cm x 120 cm x 199.2 cm
Weight System Bay 1 Four Node Pair; Four DME(Balanced)and Six Node Pair; Four DME(Dense)/ System Bay 2 Four Node Pair; Four DME (Balanced)and Dual Node Pair; Four DME (Dense): 697/819/640/515 kg
